Mini Series Needle Valves

Mini Series Needle Valves

Mini Series Needle Valves

Valve ::



: : Instrumentation Fitting >> Mini Series

Metal Industries is an ISO certified international trader company exporters and stocking metal service of valve, check valve, ball valves, industrial valves, flow control valve, globe valve, gate valve, butterfly valves, control valves, 3 way ball valve, needle valve, Power Station Valves, Plug Valve, Y-Type Strainer, Stainless Steel Valve from India

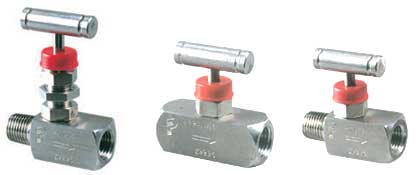

Mini Series Needle Valves


Mini Series Needle Valves

Vee tip design - Controls accurate flow.
Stem threads Rolled & Hard Plated - Provides additional strength & maximum service life.
Mirror Finish Stem, burnished to a 16RMS - Extends packing life and smooth stem operation
Fully Supported Packing - Reduces need for adjustment.
Packing Nut - Easy and fast to move external adjustment.
Stainless Steel Handle - For proper actuation.
Dust Cap - Prevents contaminants and lubricant washout of bonnet assembly.
Maximum Working Pressure : 4000 PSI (280 bar) at 200 o C. .
100% Factory tested.

Testing


Every Metal Industries Mini Needle Valve is 100% tested with nitrogen gas at 1200psig (80 Bar) for leakage at seal & seat. Hydrostatic test performed with pure water at 1 times of the working pressure.Other optional tests like helium and temperature are available upon request.


Data Sheet

End Connections
Model No
Male x Female - Viton Pkg MV-H-S-4-MF-V
Male X Female - PTFE Pkg MV-H-S-4-MF-T
Female x Female - Viton Pkg MV-H-S-4-FF-V
Female x Female - PTFE Pkg MV-H-S-4-FF-T
