Tee / Cross
Pipe Tee is a type of pipe fitting which is T-shaped having two outlets, at 90° to the connection to the main line. It is a short piece of pipe with a lateral outlet. Pipe Tee is used to connect pipelines with a pipe at a right angle with the line. Pipe Tees are widely used as pipe fittings. They are made of various materials and available in various sizes and finishes. Pipe tees are extensively used in pipeline networks to transport two-phase fluid mixtures.
Material:
Carbon steel Tee and Cross :
ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 and WPHY-42/46/52/56/60/65/70
Stainless steel: ASTM A403 WP304/304L, WP316/316/L, WP321, WP347 and WPS31254
Alloy steel Tee and Cross :
ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Duplex and super duplex steel: ASTM A815 UNS S31803/S32750/S32760
Special alloy steel: Monel400 and Inconel 600/800/825/C276, Ceramic Lined- Pressure: SCH5 to SCH160
- Standard: ANSI B16.9/B16.28 and MSS SP-43/SP-75
- Size range: 1/2 to 72 inches

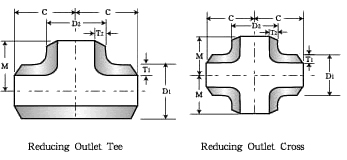

- Types: T, Pipe Tee, LT, Lateral tee , RT, Reducing tee
- End Bevel: According to the bevel of welding pipe fittings construction
- Surface treatment:Shot blasted, rust-proof black oil
- Packing: Plywood Case/ Pallet/ other
Applications of pipe tees:
Pipe Tees are widely used in various commercial and industrial applications. Industrial applications include:
-
- Chemical processing
- Petroleum
- Pulp/paper
- Refining
- Textile
- Waste treatment
- Marine
- Utilities/power generation
- Industrial equipment
- Automotive
- Gas compression and distribution industries
- Pipe Tees are also recommended for industrial plant fluid power systems.
Features of Pipe Tees:
Pipe Tees are widely used in various commercial and industrial applications. Industrial applications include:
- There are three female openings in a T shaped pipe tee.
- There are straight pipe tees which have the same size openings.
- Reducing pipe tees have one opening of different size and two openings of the same size.
- There are sanitary pipe tees which are used in waste lines. These kind of pipe tees have a curved branch which is designed for a clean out plug. They are used to prevent obstruction of waste.
- A cross pipe tee has four equal sized female openings.
- A wing pipe tee has lugs to fasten the fitting to a wall or stud.
- A compression pipe tee uses compression fittings on two or more ends.
- A test pipe tee has a threaded opening. This opening is used in conjunction with a threaded plug for a clean-out opening on a drain pipe.
|
|
|
|
